Scanning · Reconstruction · Editable CAD
Reverse engineering

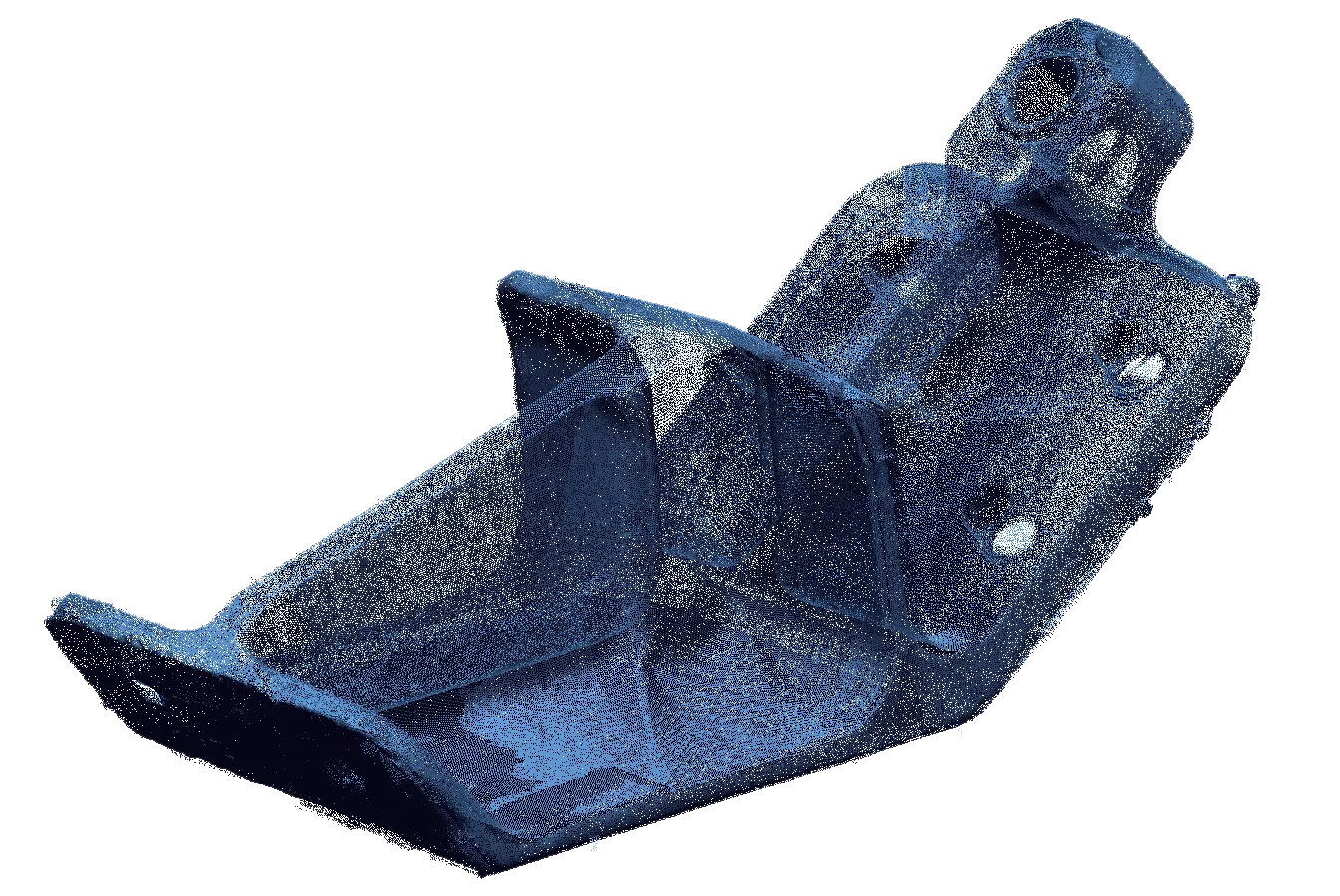

We turn physical parts into editable CAD models for maintenance, redesign, documentation and manufacturing. The workflow combines 3D capture, surface reconstruction and geometric validation against the actual reference.
Editable CAD
Parametric models ready for modification, documentation and manufacturing.
STEP · IGES
Neutral formats compatible with the leading CAD and CAM environments.
CAD ↔ cloud
Validation of the reconstructed model against the original capture data.
Service scope
Capabilities, applications and deliverables
We define the technical workflow based on the geometry, the functional requirements and the level of validation the project needs.
Reconstruction
Process and compatibility
- Input from a physical part, point cloud, mesh or available documentation.
- Reconstruction of NURBS surfaces and solids with a feature tree when the scope allows.
- Definition of functional geometry, references, symmetries and manufacturing features.
- Export to STEP, IGES or other formats agreed with the client.
Outcome
Applications and deliverables
- Spare parts for components with no drawing or incomplete documentation.
- Part redesign for new materials, processes or operating conditions.
- Adapting geometry to existing assemblies.
- CAD model, derived files and a basic deviation report where applicable.
Applications
Where it adds value
The final setup is tailored to the industry, the part's use and the project's acceptance criteria.
Maintenance
Spare parts without drawings
Recover the geometry of obsolete or undocumented components.
Redesign
Product improvement
Adjust features, materials and processes from an editable CAD baseline.
Integration
Assembly adaptation
Design interfaces and components compatible with existing equipment.
Process
A controlled workflow from start to finish
Each stage produces verifiable information to reduce rework and keep technical decisions traceable.
- 01
Capture
We digitize the part or review the available mesh and information.
- 02
Reconstruction
We define surfaces, solids and functional features.
- 03
Validation
We compare the CAD against the reference and correct relevant deviations.
- 04
Release
We deliver editable formats and files ready for the next process.
Related services
Integrate the full workflow
Combine this service with other AxonID capabilities to move from capture or validation through to manufacturing and dimensional inspection.
Do you have files, drawings or a reference part?
Share the scope, quantity, material and expected timeline. We will review the information and propose the right technical workflow.
